ODX-AGM78

$599.12

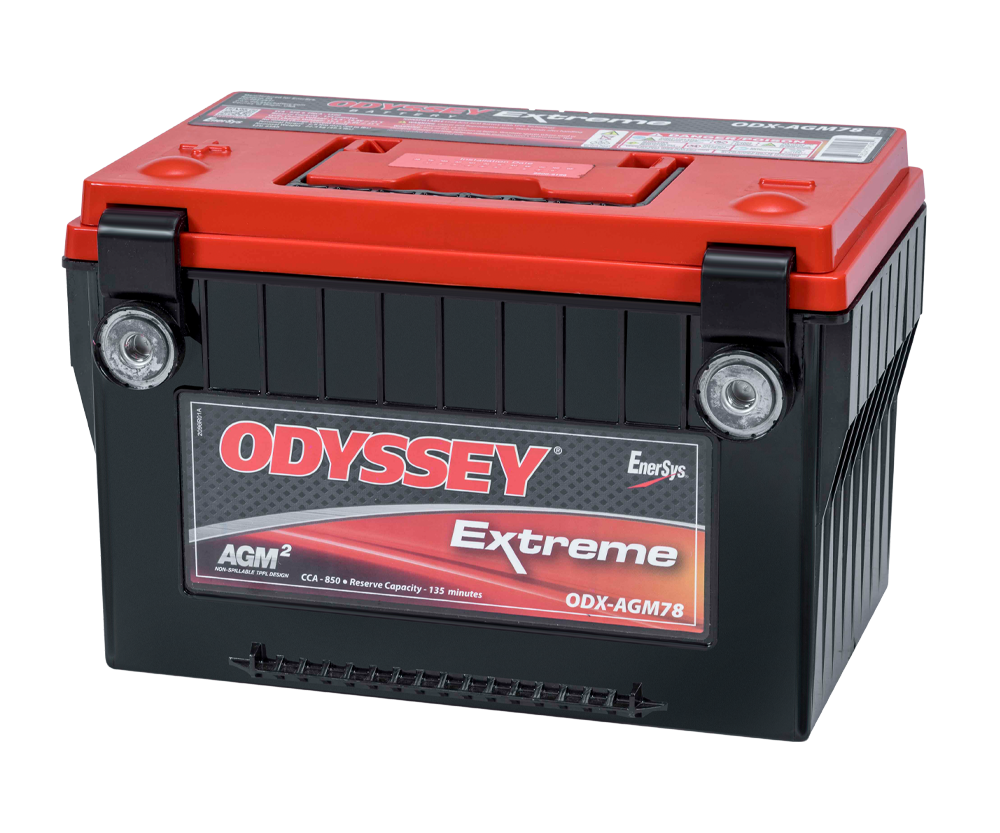

The ODX-AGM78 (78-PC1500) is an ODYSSEY Extreme Series sealed AGM Group 78 battery built for vehicles that demand both massive starting power and true deep-cycle capability. Its rugged TPPL AGM design is made to stand up to shock and vibration while delivering rapid recovery and long service life for accessory-heavy trucks and SUVs. Specs include 850 CCA, 1500 PHCA (5 sec), 68Ah (20Hr), and 134 minutes reserve capacity.

SKU: ODX-AGM78 Category: Brand:

Additional information

Weight 22.45 kg
Dimensions 27.7 × 17.3 × 18.5 cm
Case QTY

1

Cold Cranks

850

Core

15

Cranking Amps

N/A

Polarity

'+ –

Terminal

SIDE

Volt

12

Reserve Minutes

135

Pulse (5 second) Hot Cranking Amps (PHCA)

1500

HCA

1250

MCA

1050

20Hr Nominal Capacity (Ah)

68

10Hr Nominal Capacity (Ah)

62

Torque Spec in-lbs (Nm max)

60 (6.8)

Internal Resistance (mΩ)

2.5

Short Circuit (A)

3100

Operating Temperature Range

-40°F / -40°C to 176°F / +80°C

Optimum Storage Temperature

68°F / +20°C
